Repair procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the drive belt.

    (Refer to DRIVE BELT )

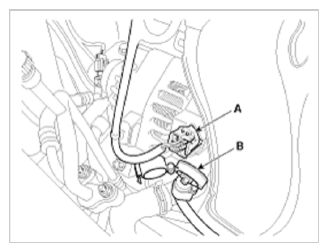

  3. Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.
    Fig 1: Identifying Alternator Connector And Cable
    G09779369Courtesy of KIA MOTORS AMERICA, INC.

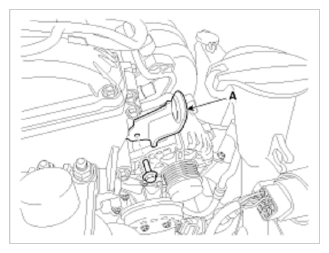

  4. Remove the front engine hanger (A).
    Fig 2: Identifying Front Engine Hanger
    G09779370Courtesy of KIA MOTORS AMERICA, INC.

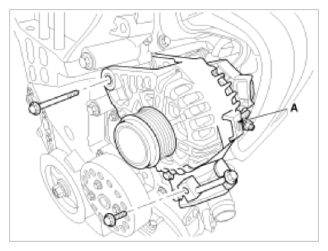

  5. Pull out the through bolt and then remove the alternator (A).
    Fig 3: Identifying Alternator
    G09779371Courtesy of KIA MOTORS AMERICA, INC.
