Circuit Diagram: (A/T)

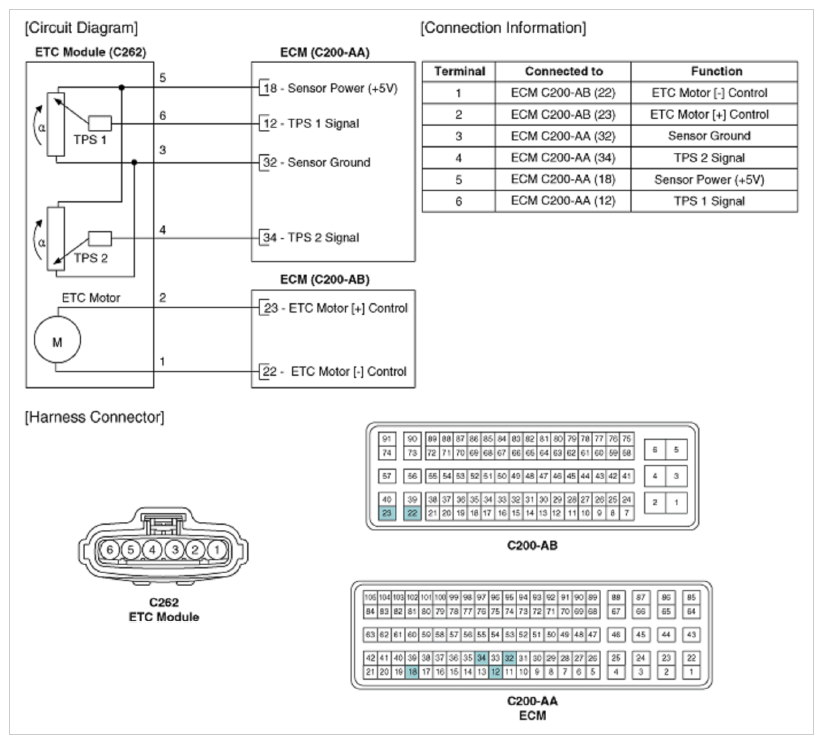

Fig 1: ETC System Circuit Diagram (A/T)

G09779236

Courtesy of KIA MOTORS AMERICA, INC.
