Signal Waveform & Data

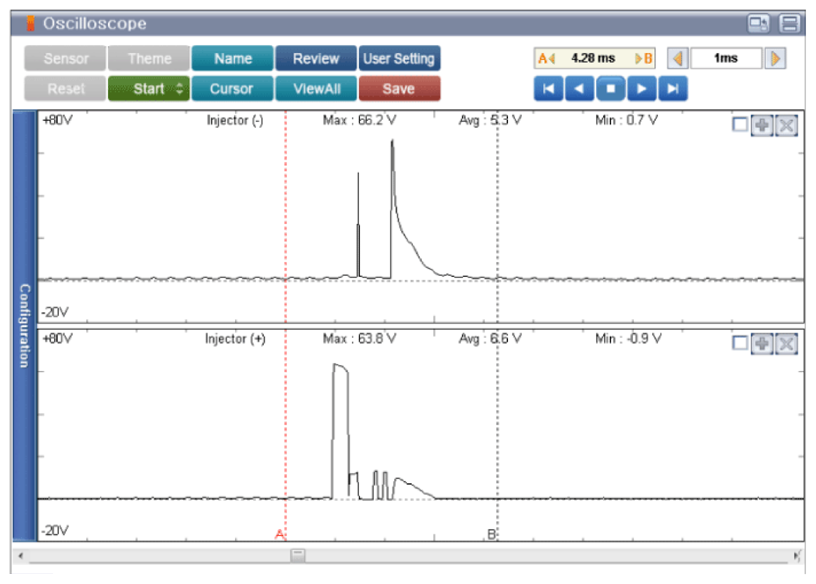

Fig 1: Display - Engine Idle After Warm Up Signal Waveform Screen

Courtesy of KIA MOTORS AMERICA, INC.

CH. A(-) - Injector Max 66.2V

CH. B(+) - Injector Max 63.8V

* Test Method: Connect Channel A positive probe to Pin No. 1 (-) and Channel B positive probe to Pin No. 2 (+) on the injector connector.
