Signal Waveform & Data

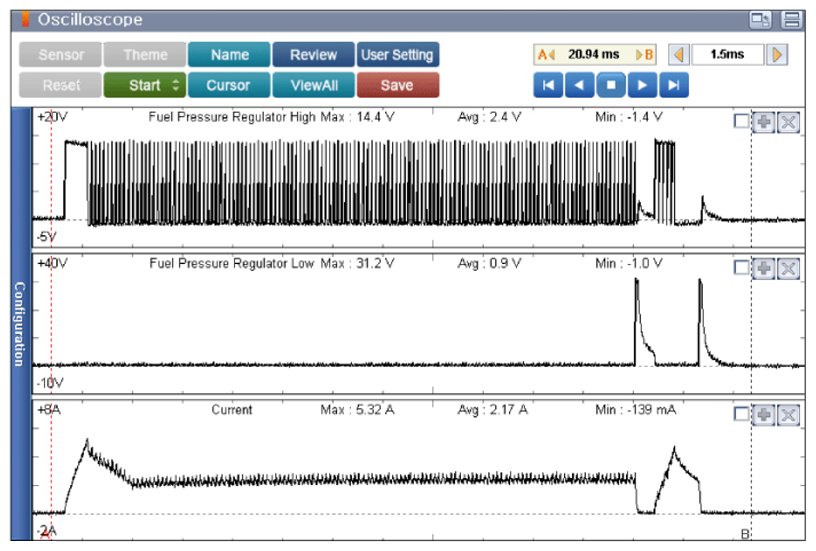

Fig 1: Display - Fuel Pressure Regulator Waveform Screen (Engine Idle After Warm Up)
G09780682Courtesy of KIA MOTORS AMERICA, INC.

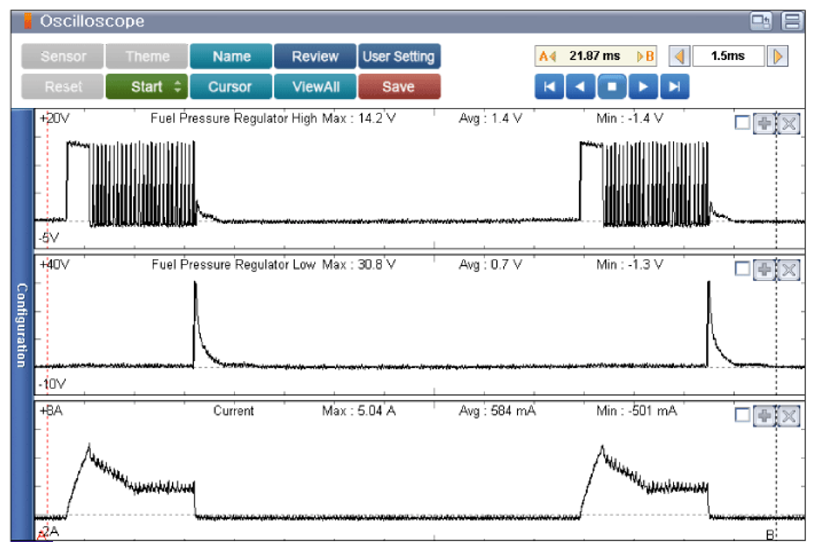

Fig 2: Display - Fuel Pressure Regulator Waveform Screen (Approx. 2000rpm)
G09780683Courtesy of KIA MOTORS AMERICA, INC.

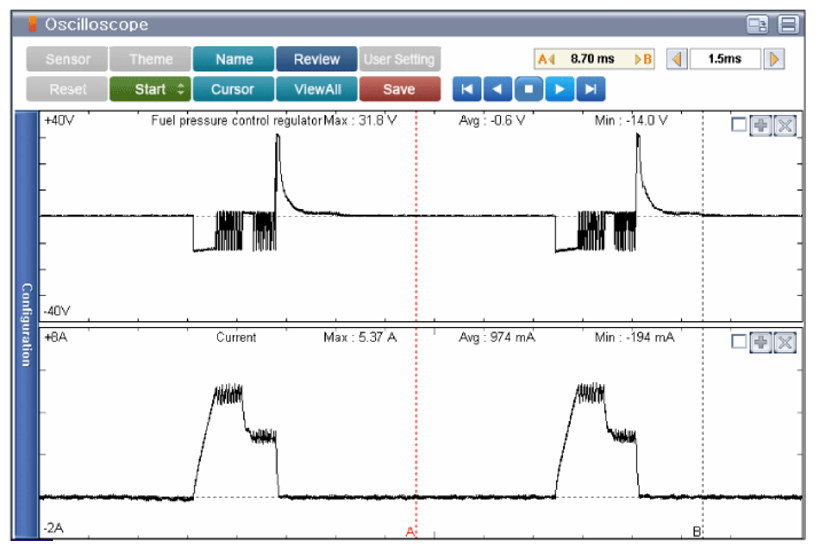

Fig 3: Display - Fuel Pressure Regulator Waveform Screen (Approx. 3000rpm)
G09780684Courtesy of KIA MOTORS AMERICA, INC.
