LEMON Manuals: Even more car manuals for everyone

Home >> Kia >> 2014 >> Soul ! >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views (Main Harness) -- Soul 2.0L >> Connector End Views >> Smart Key Control Module Connector End View (M32-A)

Smart Key Control Module Connector End View (M32-A)

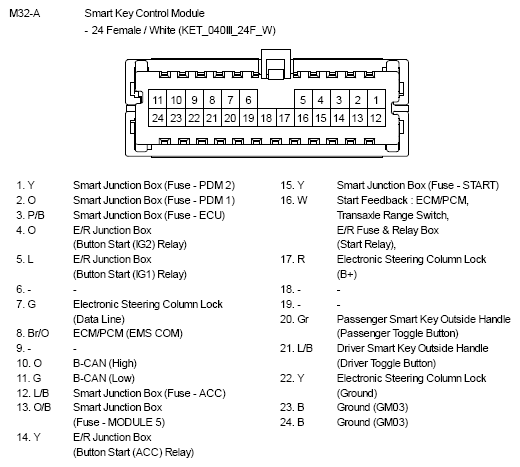

Fig 1: Smart Key Control Module Connector End View (M32-A)

G10793038

Courtesy of KIA MOTORS AMERICA, INC.
