Repair Procedures: Removal

Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to "COOLANT ")

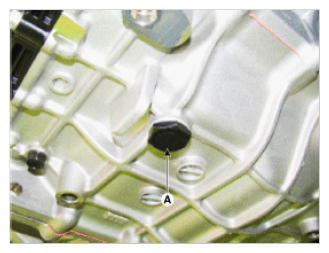

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Drain plug tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

Fig 1: Identifying Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Replace the gasket before reinstalling the drain plug.

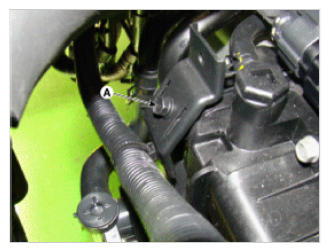

Remove the wiring bracket installation bolt (A).

Fig 2: Identifying Wiring Bracket Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.

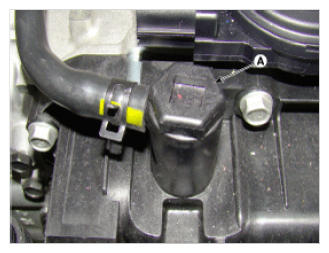

Remove the ATF Injection hole (eyebolt) (A).

Fig 3: Identifying ATF Injection Hole
Courtesy of KIA MOTORS AMERICA, INC.

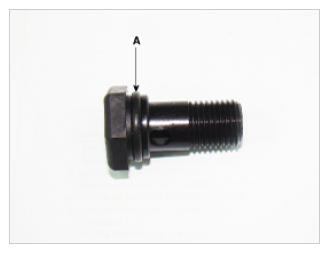

CAUTION: Replace the O-Ring (A) before reinstalling the eyebolt.

Fig 4: Identifying Eyebolt O-Ring
Courtesy of KIA MOTORS AMERICA, INC.

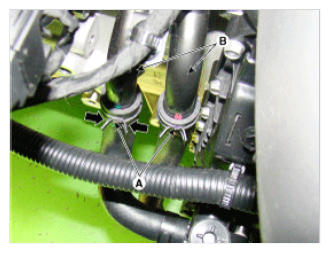

Disconnect the coolant hose (B) after removing the coolant hose clamp (A).

Fig 5: Identifying Coolant Hose And Clamp
Courtesy of KIA MOTORS AMERICA, INC.

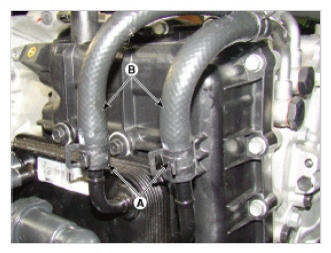

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 6: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
Courtesy of KIA MOTORS AMERICA, INC.

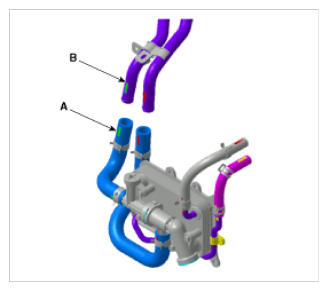

CAUTION: When hose & pipe assembly
Align marking of pipe (B), marking of hose (A), and matching color each other.

Fig 7: Identifying Alignment Mark Of Pipe And Hose
Courtesy of KIA MOTORS AMERICA, INC.

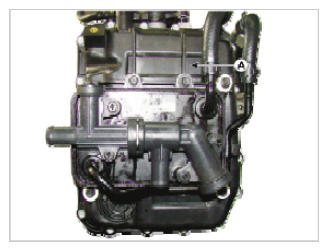

Remove the valve body cover (A).
Tightening torque:

(A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 8: Identifying Valve Body Cover
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:

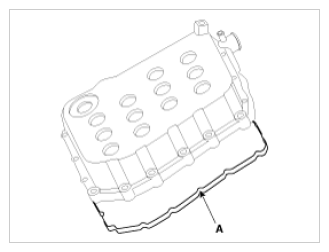

- Replace the gasket (A) before reinstalling the valve body cover.
Fig 9: Identifying Valve Body Cover Gasket
Courtesy of KIA MOTORS AMERICA, INC.

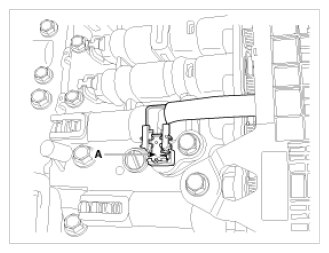

Disconnect the oil temperature sensor connector (A).

Fig 10: Identifying Oil Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

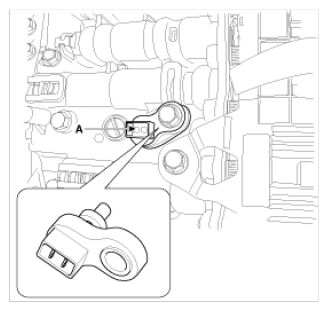

Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

Fig 11: Identifying Oil Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.
