Repair Procedures: Installation

CAUTION:

Do not use already used injector fixing clip again.

CAUTION:

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

Install in the reverse order of removal.
NOTE:
- Use the special service tool [SST No.: 09314-3V100] to install the high pressure fuel pipe.

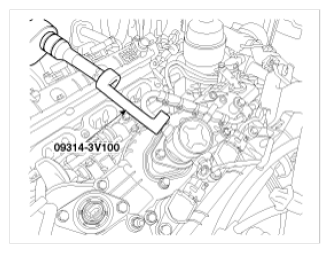

Fig 1: Identifying High Pressure Fuel Pipe (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

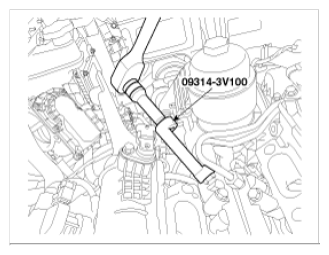

Fig 2: Identifying High Pressure Fuel Pipe (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

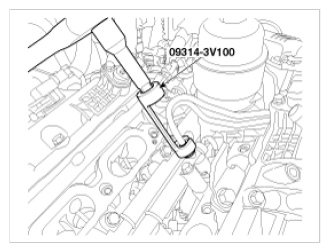

Fig 3: Identifying High Pressure Fuel Pipe (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

High pressure fuel pipe installation nut:

29.4 ~ 35.3 N.m (3.0 ~ 3.6 kgf.m, 21.7 ~ 26.0 lb-ft)

High pressure pipe bracket installation bolt:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.74 lb-ft)

High pressure pipe function block installation bolt:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.74 lb-ft)
