CVVT Oil Control Valve (Bank1/Exhaust)

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).

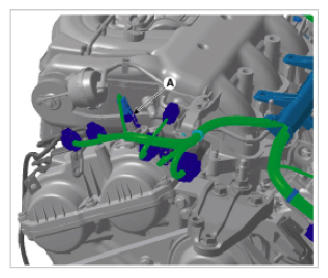

    Fig 1: Identifying CVVT Oil Control Valve Connector (Bank1/Exhaust)
    G09765373Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the surge tank.

    (Refer to "SURGE TANK ")

  4. Remove the cylinder head cover.

    (Refer to "CYLINDER HEAD COVER ")

  5. Remove the installation bolt (A), and then remove the valve from the engine.
    Fig 2: Identifying CVVT Oil Control Valve And Bolt (Bank1/Exhaust)
    G09751343Courtesy of KIA MOTORS AMERICA, INC.
