Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolts (B).

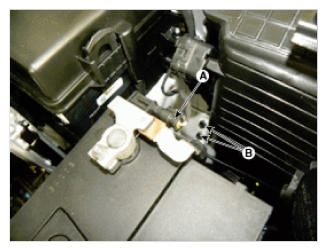

    Fig 1: Identifying Battery Sensor Connector And Bolts
    G09765162Courtesy of KIA MOTORS AMERICA, INC.
