2WD only

  1. Remove the connector (A) after removing the front wheel speed sensor clip.

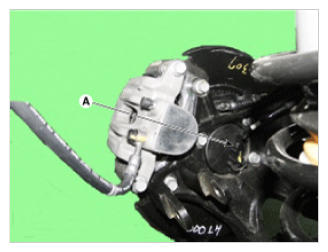

    Fig 1: Identifying Front Wheel Speed Sensor Connector
    G09766292Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the rear wheel speed sensor.

    (Refer to "REAR HUB - CARRIER ")

  3. Installation is the reverse of removal.
