Repair Procedures: Removal
CAUTION:
- Put on gloves to protect your hands.
- Take care not to body surface and other parts.
- Remove the following parts.
- Second row seat assembly
- Third row seat assembly
- Rear door scuff trim
- Rear transverse trim
- Luggage side trim
- C pillar trim
- Rear pillar trim

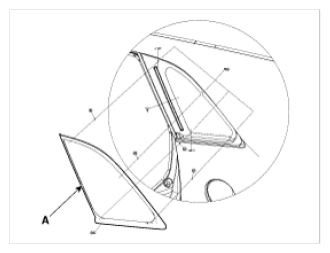

- Loosen the quarter fixed glass (A) mounting nut.
Tightening torque:
5.9 ~6.4 N.m (0.6~0.65 Kgf.m, 4.3~4.7 lb-ft)
- Cut out the sealant using the sealant cutting tool (09861-31100).CAUTION:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
- Remove the rubber dam and fasteners from the body.
- Mask off surrounding surfaces before painting.
- Remove the quarter fixed glass.
