Rear Pillar Trim Replacement

NOTE:

Pry the trim off using a plastic trim tool and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.

Remove the luggage side trim.
After loosening the mounting bolt, then remove the rear pillar trim (A).

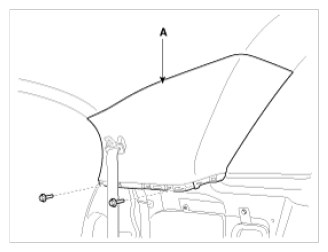

Fig 1: Identifying Rear Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Replace any damaged clips.
