Crash Pad Side Cover Replacement

NOTE:

Pry the trim off using a plastic trim tool and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

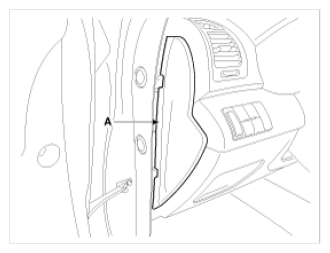

Fig 1: Identifying Crash Pad Side Cover (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

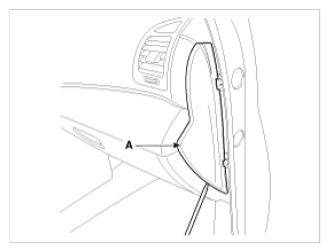

Fig 2: Removing Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Replace any damaged clips.
