Audio Assembly Replacement

NOTE:

Pry the trim off using a plastic trim tool and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.

Remove the center fascia panel.
After loosening the mounting screws, then remove the crash pad center air vent (A).
[LH]

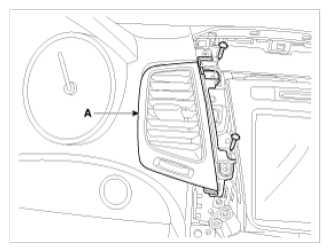

Fig 1: Identifying Crash Pad Center Air Vent (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

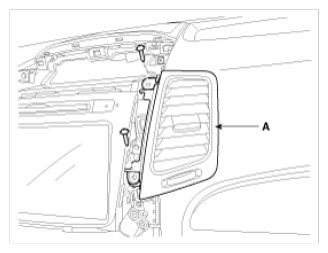

Fig 2: Identifying Crash Pad Center Air Vent (RH)
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the AVN head unit (A).

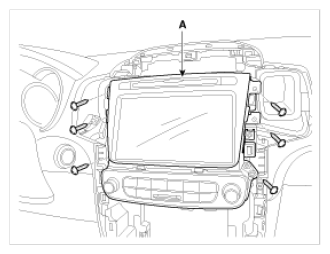

Fig 3: Identifying AVN Head Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the AVN head unit connectors (A).

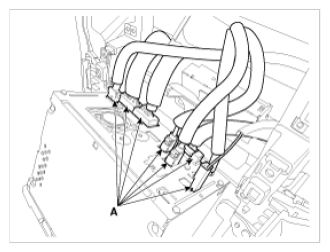

Fig 4: Identifying AVN Head Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Make sure the connector is connected properly.
- Replace any damaged clips.
