Rear Console Cover Replacement

NOTE:

Pry the trim off using a plastic trim tool and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.

Using a screwdriver or remover, remove the rear console cover (A).

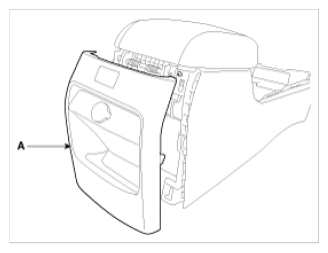

Fig 1: Identifying Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the power outlet connector (A).

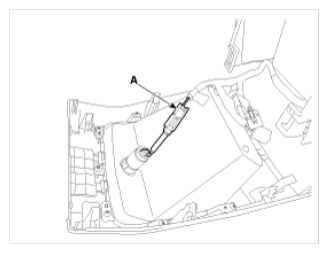

Fig 2: Identifying Power Outlet Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Make sure the connector is connected properly.
- Replace any damaged clips.
