Floor Console Assembly Replacement

NOTE:

Pry the trim off using a plastic trim tool and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.

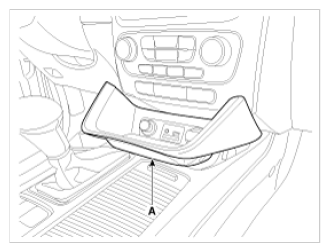

Using a screwdriver or remover, remove the floor console upper tray (A).

Fig 1: Identifying Floor Console Upper Tray
Courtesy of KIA MOTORS AMERICA, INC.

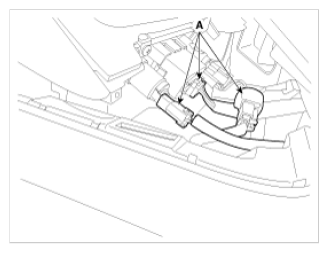

Disconnect the connectors (A).

Fig 2: Identifying Floor Console Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.

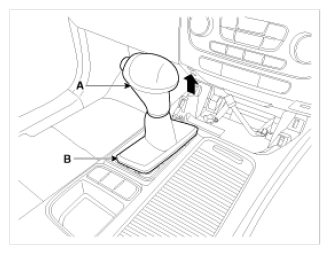

Remove the gear boots (B) and gear knob (A).

Fig 3: Removing Gear Boots And Gear Knob
Courtesy of KIA MOTORS AMERICA, INC.

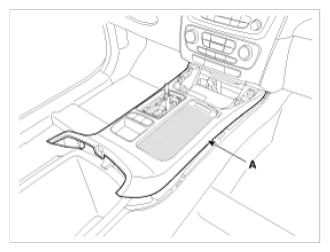

Using a screwdriver or remover, remove the console upper cover (A).

Fig 4: Identifying Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Fig 5: Identifying Floor Console Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.

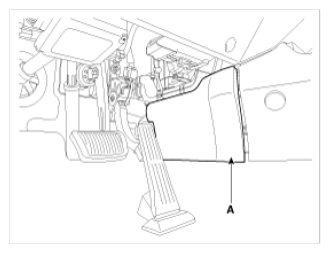

Using a screwdriver or remover, remove the console side cover (A).
[LH]

Fig 6: Identifying Console Side Cover (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 7: Identifying Console Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

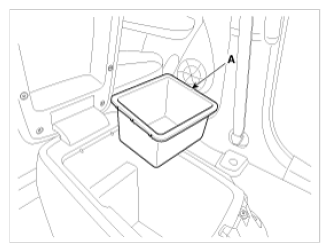

Remove the console armrest tray (A).

Fig 8: Identifying Console Armrest Tray
Courtesy of KIA MOTORS AMERICA, INC.

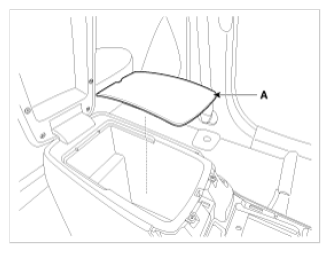

Remove the console tray met (A).

Fig 9: Identifying Console Tray Met
Courtesy of KIA MOTORS AMERICA, INC.

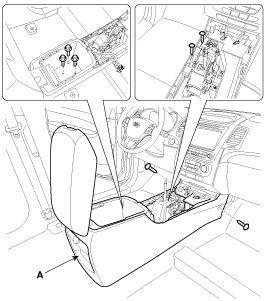

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 10: Identifying Floor Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.

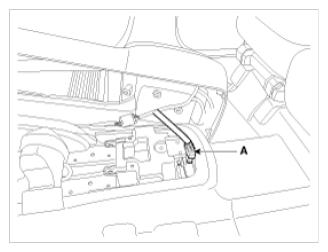

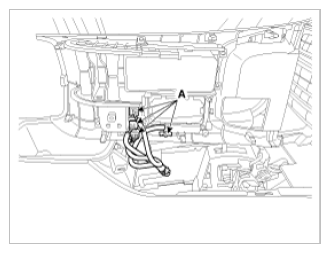

Disconnect the connector (A).

Fig 11: Identifying Floor Console Assembly Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
