Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing (A).

    (Refer to "CRASH PAD ")

  3. Remove the smart key unit (A) after removing the bolts and connectors.

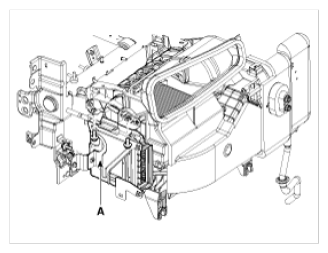

    Fig 1: Identifying Smart Key Unit
    G09766898Courtesy of KIA MOTORS AMERICA, INC.
