FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

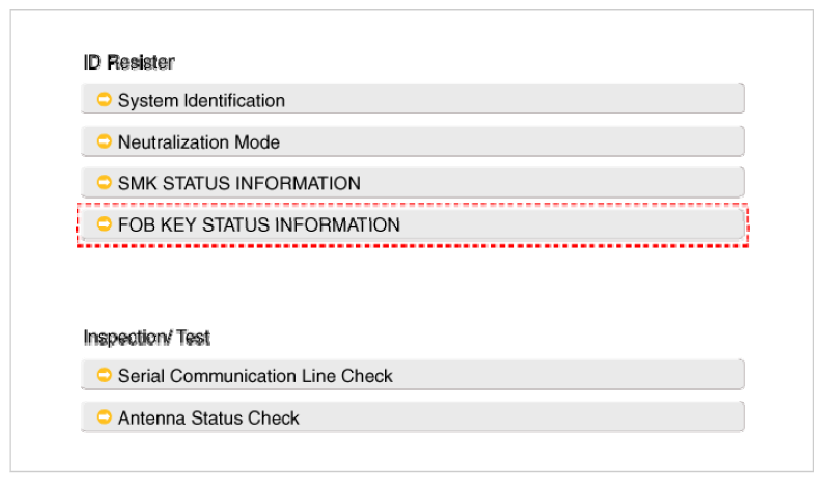

    Fig 1: Selecting Fob Key Status Information
    G09766928Courtesy of KIA MOTORS AMERICA, INC.

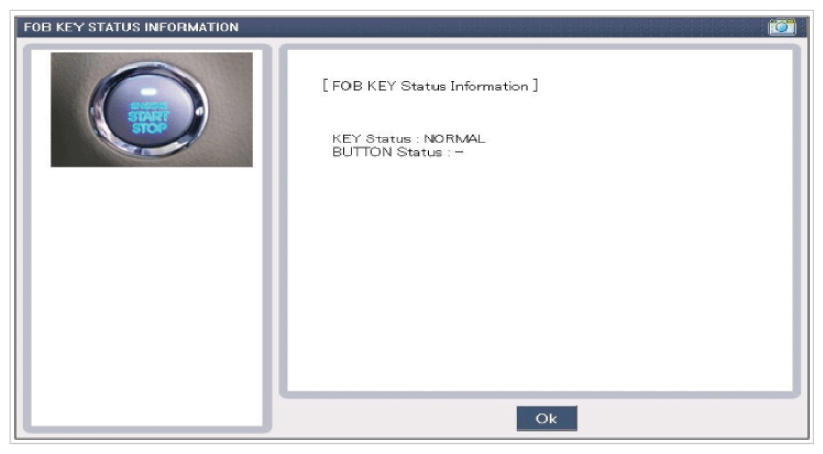

    Fig 2: Display Fob Key Status Information
    G09766929Courtesy of KIA MOTORS AMERICA, INC.
