Trouble Diagnostics When Using GDS

The IPM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the IPM function, select the vehicle model and IPM.

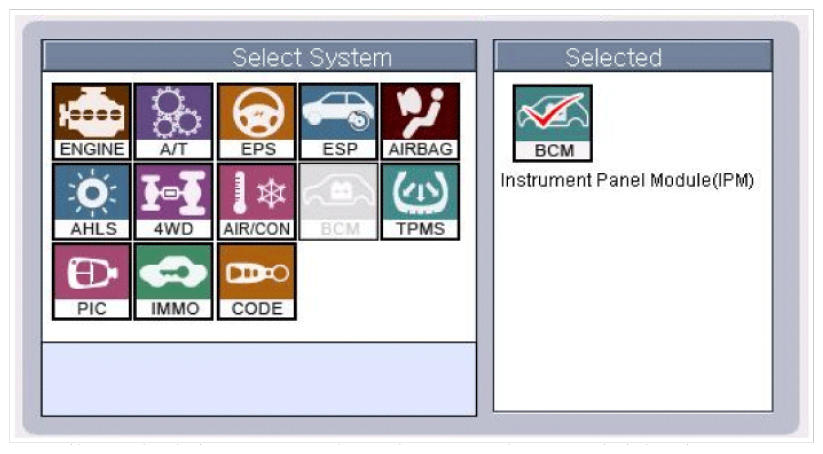

Fig 1: Display Vehicle Model
Courtesy of KIA MOTORS AMERICA, INC.
To consult the present input/out value of IPM, "Current DATA". It provides information of IPM input/output conditions of power supply, turn signal/brake lamp, headlamp, door locks, outside mirror, wiper, auto-light and transmitters etc.

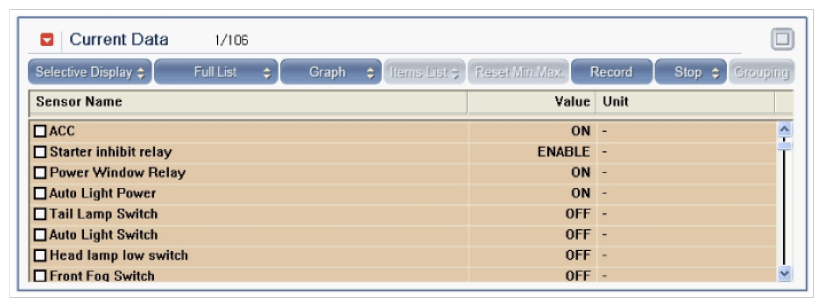

Fig 2: Display Current Data
Courtesy of KIA MOTORS AMERICA, INC.
To perform functional test on IPM outputs, select "Actuation Test"

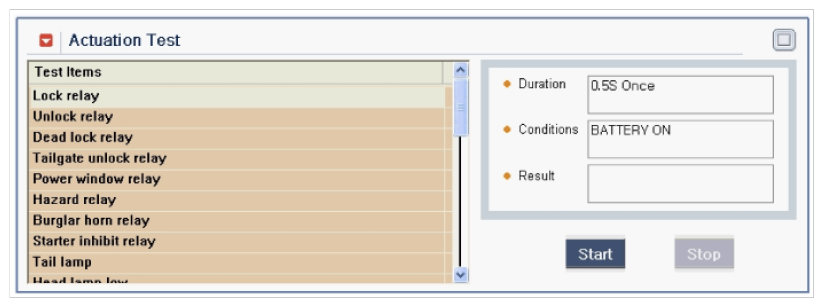

Fig 3: Display Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.

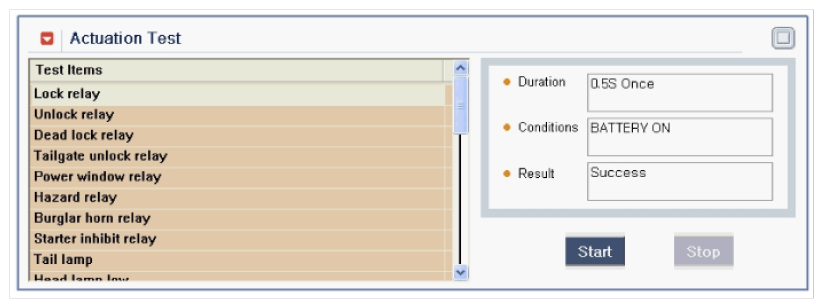

Fig 4: Display Actuation Test Result
Courtesy of KIA MOTORS AMERICA, INC.
To change the "user option" on BCM, select the "User Option" menu and change the value as below.

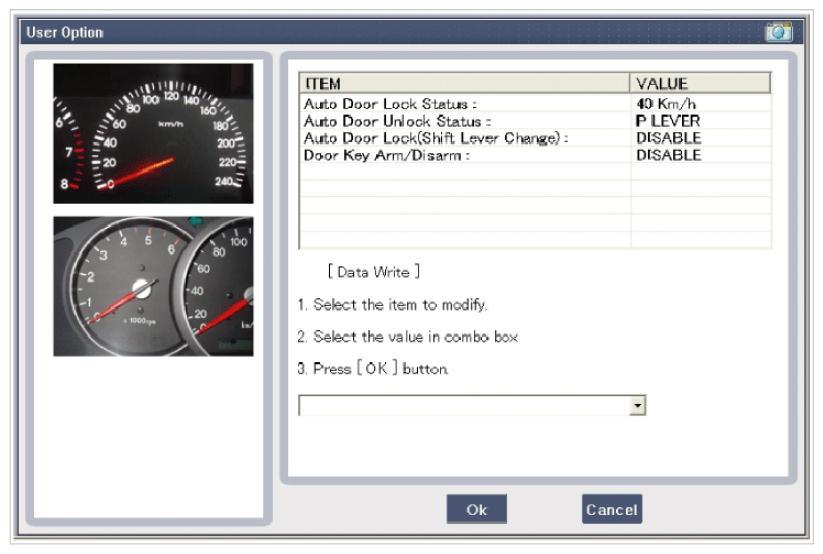

Fig 5: Display User Option Menu
Courtesy of KIA MOTORS AMERICA, INC.
