Component Location

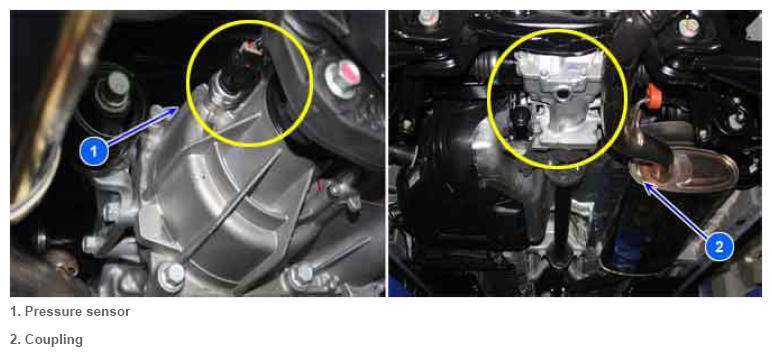

Fig 1: Identifying Pressure Sensor And Coupling Components Location
G09768202Courtesy of KIA MOTORS AMERICA, INC.
