Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Place the shift lever into the "N" position.
  2. Remove the air cleaner assembly.

    (Refer to "AIR CLEANER ")

  3. Remove the battery and the battery tray.

    (Refer to "BATTERY ")

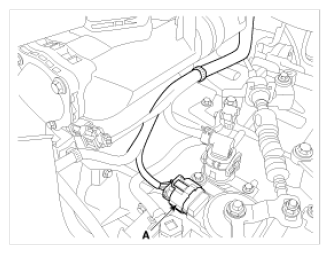

  4. Disconnect the inhibitor switch connector (A).
    Fig 1: Identifying Inhibitor Switch Connector
    G09764662Courtesy of KIA MOTORS AMERICA, INC.

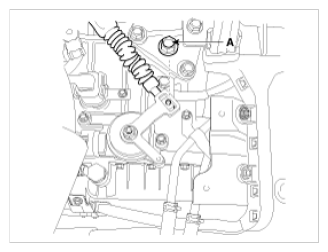

  5. Remove the shift cable mounting nut (A).
    Fig 2: Identifying Shift Cable Mounting Nut
    G09764663Courtesy of KIA MOTORS AMERICA, INC.

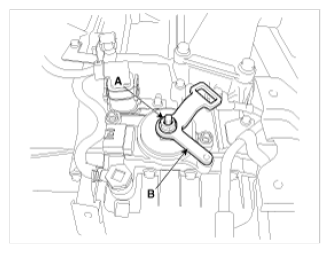

  6. Remove the manual control lever (B) and the washer after removing a nut (A).
    Fig 3: Identifying Manual Control Lever
    G09764664Courtesy of KIA MOTORS AMERICA, INC.

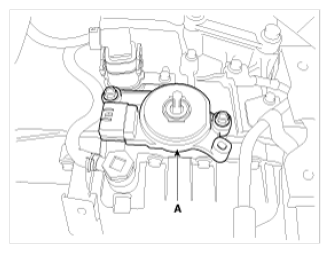

  7. Remove the inhibitor switch (A) after removing the bolts (2ea).
    Fig 4: Identifying Inhibitor Switch And Bolt
    G09764665Courtesy of KIA MOTORS AMERICA, INC.
