Valve Body Flow

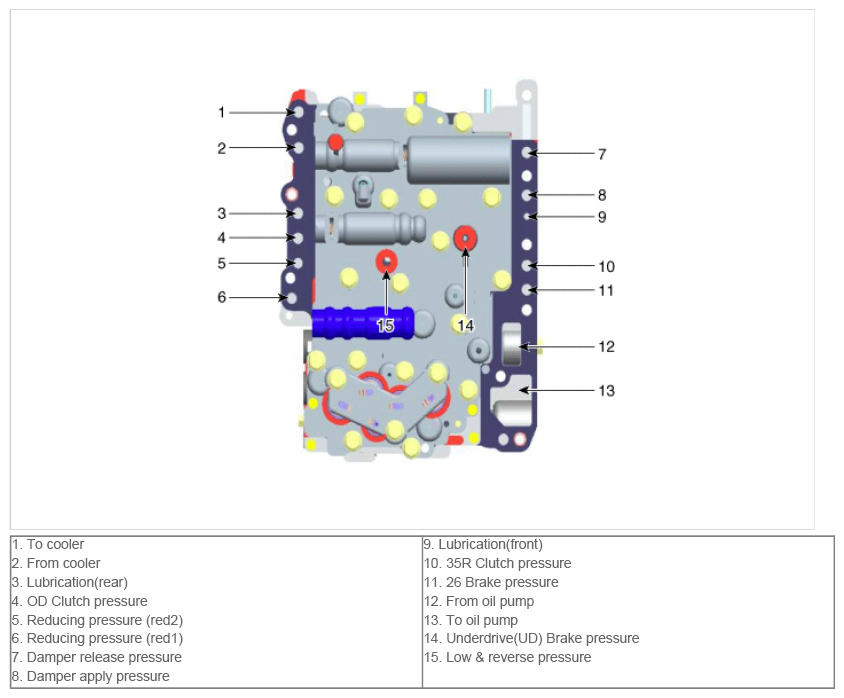

Fig 1: Identifying Valve Body Flow Diagram

G09765509

Courtesy of KIA MOTORS AMERICA, INC.
