Component Location

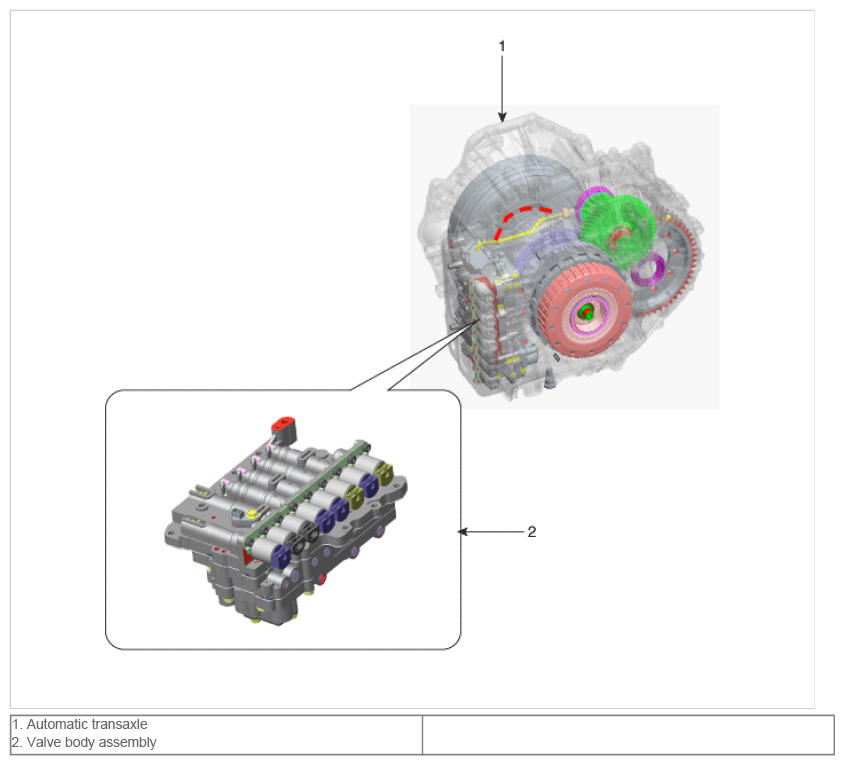

Fig 1: Automatic Transaxle And Valve Body Assembly
G09765507Courtesy of KIA MOTORS AMERICA, INC.

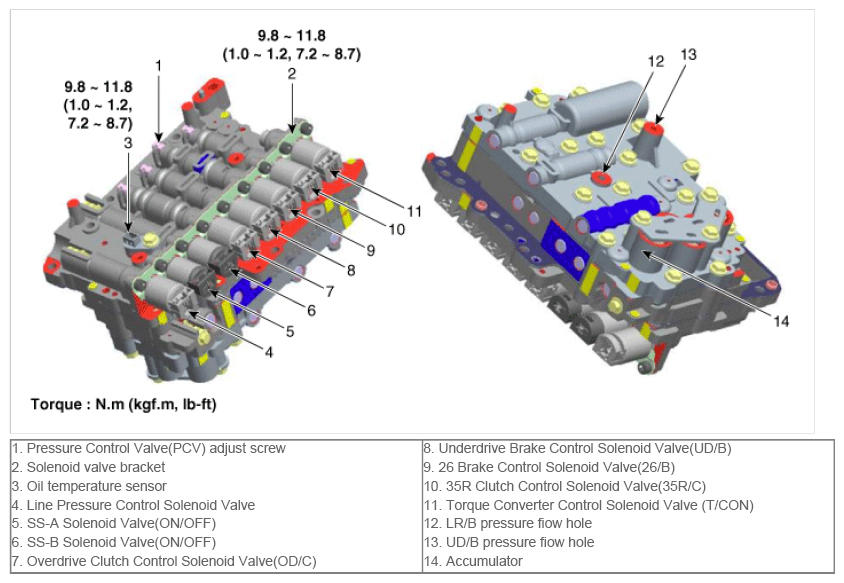

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications
G09765508Courtesy of KIA MOTORS AMERICA, INC.
