Home >> Kia >> 2014 >> Sorento EX, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - A6LF2 >> Automatic Transaxle Fluid >> Components And Components Location >> Component Location

Component Location

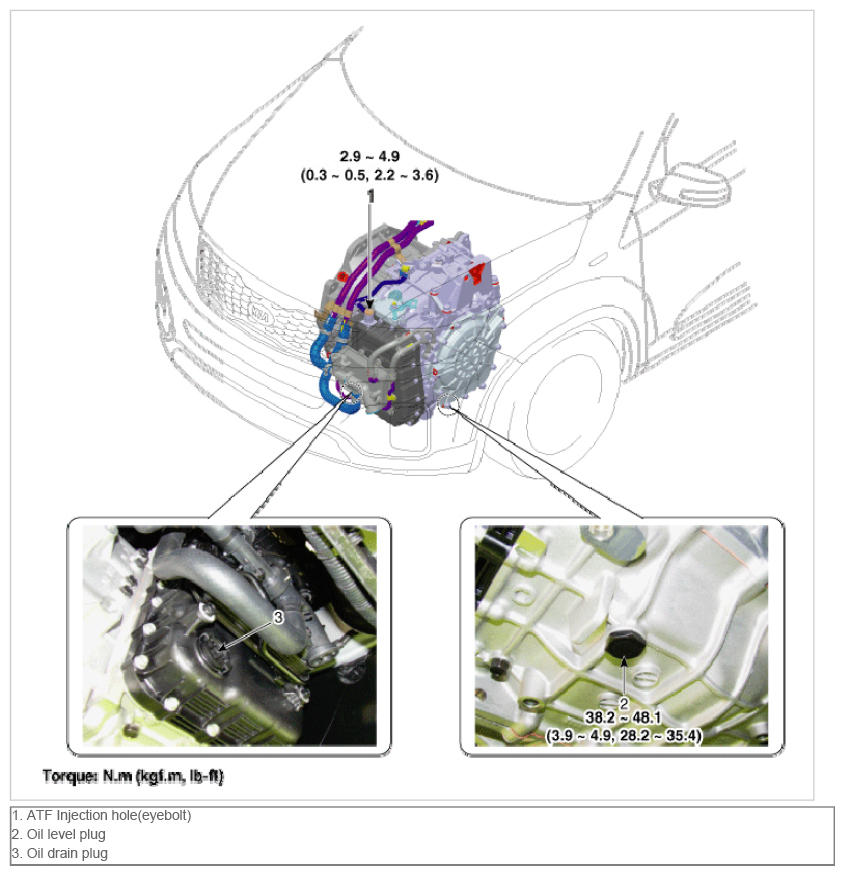

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications

G09765501

Courtesy of KIA MOTORS AMERICA, INC.
