Repair Procedures: Removal

Remove the front wheel and tire (A) from front hub.
Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

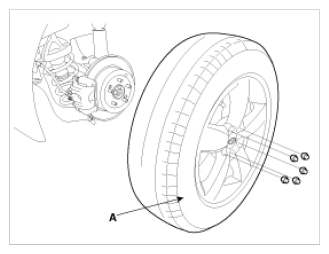

Fig 1: Identifying Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake hose (A) & wheel speed sensor (B) from the front strut assembly by loosening mounting bolts.
Tightening torque:
1. 12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)
2. 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

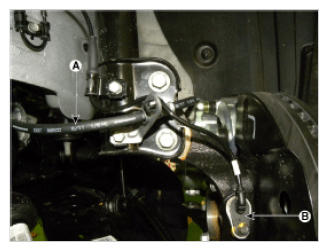

  Fig 2: Identifying Brake Hose And Wheel Speed Sensor
  Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque: 98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Fig 3: Identifying Stabilizer Link And Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front strut assembly (A) with the knuckle by loosening the bolt & nut.
Tightening torque: 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

Fig 4: Identifying Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")
Remove the front strut assembly (B) and then loosen the strut mounting nuts (A-3ea).
Tightening torque: 53.9 ~ 73.5 N.m (5.5 ~ 7.5 kgf.m, 39.8 ~ 54.2 lb-ft)

Fig 5: Identifying Front Strut Assembly Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
