Repair procedures: Inspection

  1. Measure a resistance of NTC and Heated pad.
    1. NTC resistance (Black/Yellow, Black) - 10.0 kΩ ± 10% (25°C)
    2. Heated pad resistance (Yellow, Black) - 1.6 ~ 2.0 Ω ± 10%
  2. Measure a temperature.
    1. The temperature of wheel surface grip must rise from -20°C to 20°C within 6 minute
    2. The temperature of wheel surface grip must keep 38°C ± 4°C after 25 minute
    3. At that time switch on, all measure point (1~8)

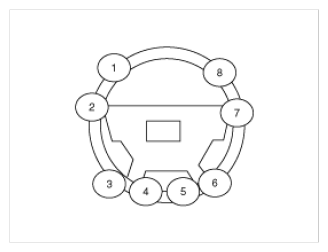

      Fig 1: Identifying Points For Wheel Temperature Measurement
      G09766039Courtesy of KIA MOTORS AMERICA, INC.
