Repair Procedures: Removal: General

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver then replace the bulb.

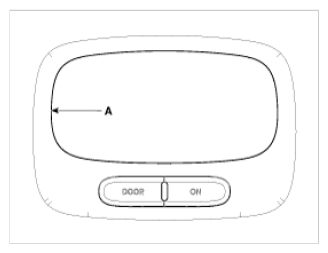

    Fig 1: Lamp Lens
    G09767322Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the fixing screw (2EA) and disconnect the 4P connector. And then remove the room lamp assembly (A).

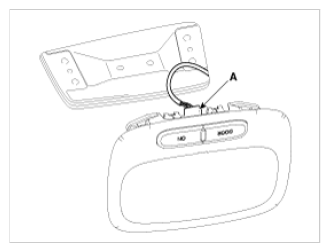

    Fig 2: Room Lamp Assembly Connector
    G09767323Courtesy of KIA MOTORS AMERICA, INC.
