Repair Procedures: Inspection

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

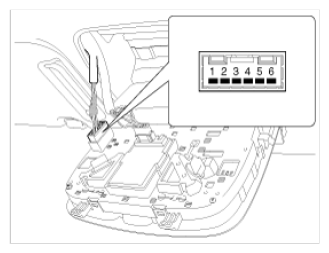

Fig 1: Overhead Console Lamp Connector Pins

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Checking Continuity Between Overhead Console Lamp Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Overhead Console Lamp - Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
