Component Location

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

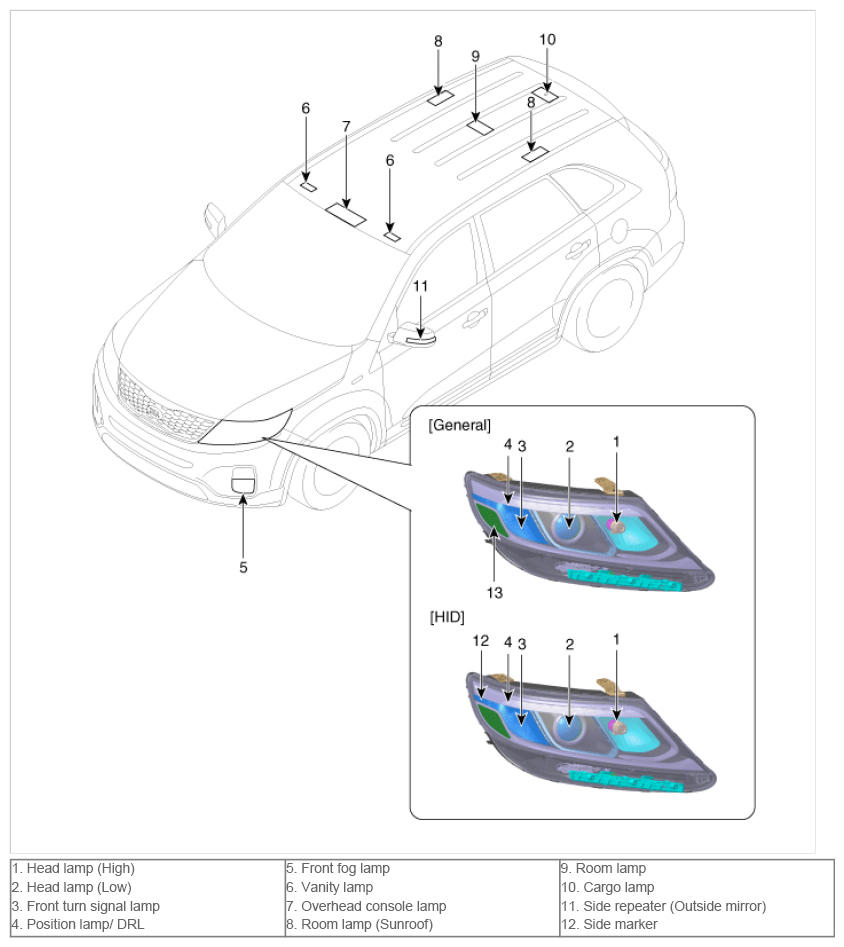

Fig 1: Head Lamp And Room Lamp Components Location
G09767292Courtesy of KIA MOTORS AMERICA, INC.

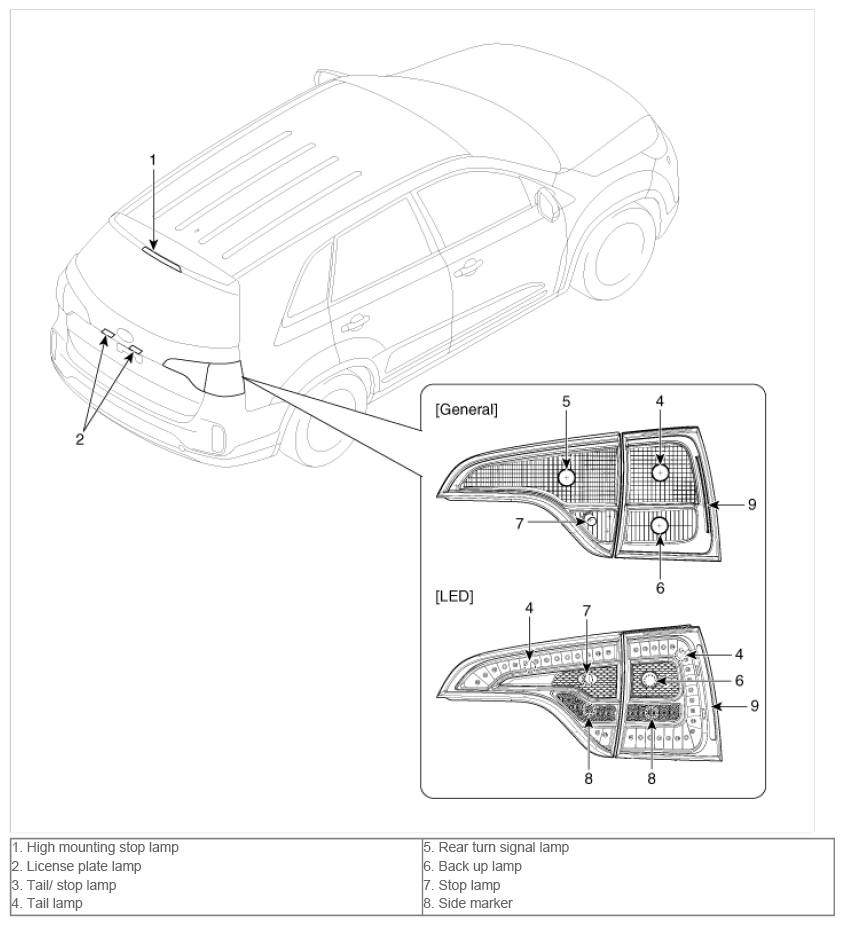

Fig 2: Tail Lamp Components Location
G09767293Courtesy of KIA MOTORS AMERICA, INC.
