Signal Waveform & Data

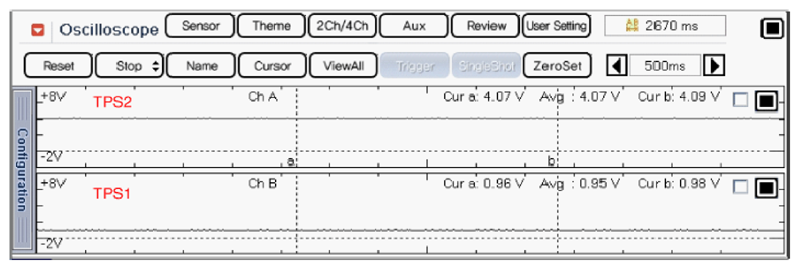

Fig 1: Scantool Display - Normal Waveform Of TPS1 And TPS2 With Acceleration Pedal Not Depressed With IG "ON"

Courtesy of KIA MOTORS AMERICA, INC.

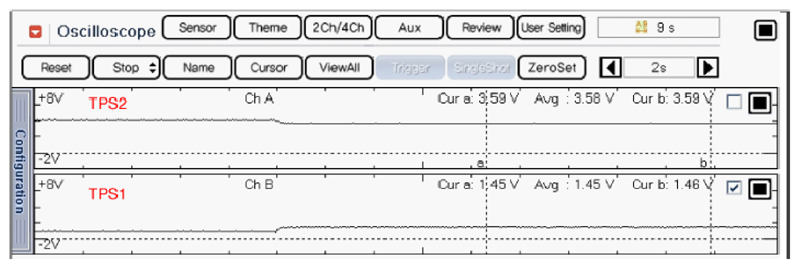

Fig 2: Scantool Display - Normal Waveform Of TPS1 And TPS2 With Acceleration Pedal Depressed With IG "ON"

Courtesy of KIA MOTORS AMERICA, INC.

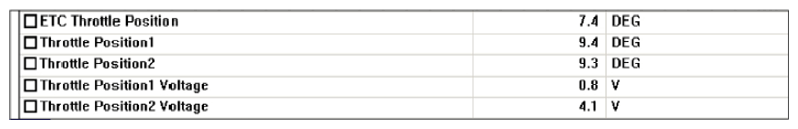

Fig 3: Scantool Display - Normal Data Of TPS1 And TPS2 With IG "ON" Condition

Courtesy of KIA MOTORS AMERICA, INC.

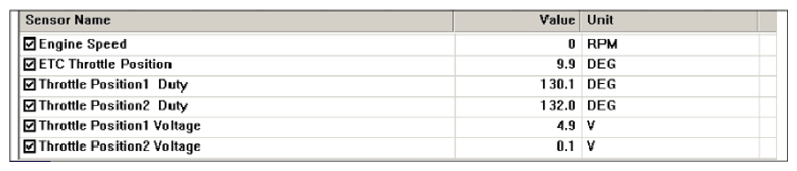

Fig 4: Scantool Display - Normal Data Of TPS1 And TPS2 With Open Condition

Courtesy of KIA MOTORS AMERICA, INC.

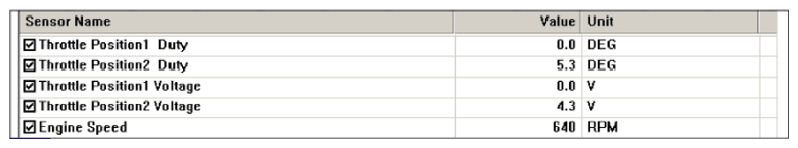

Fig 5: Scantool Display - Normal Data Of TPS1 And TPS2 With Short To Ground In TPS1 Circuit

Courtesy of KIA MOTORS AMERICA, INC.
