Components and Components Location: Components: LH

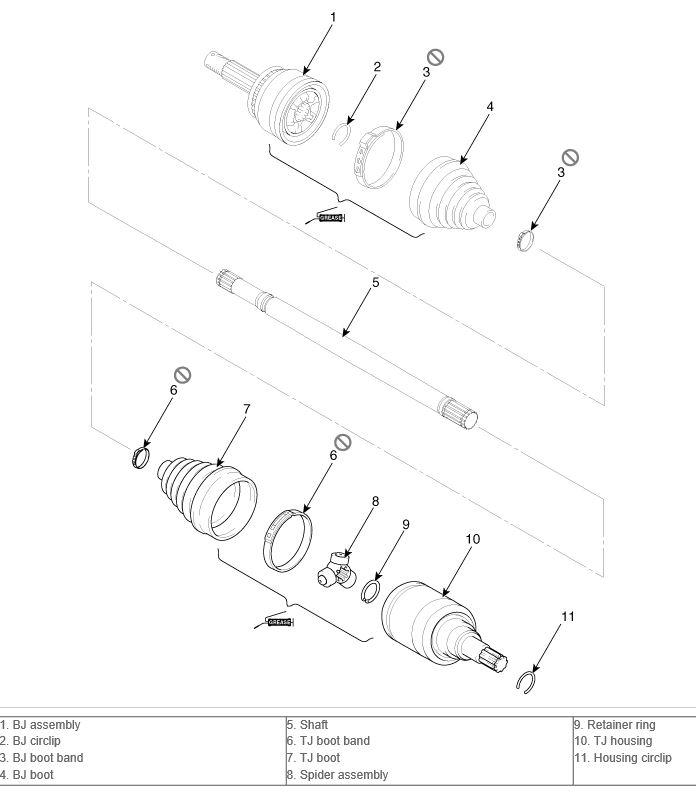

Fig 1: Front Driveshaft Assembly Components Location (LH)

G09765771

Courtesy of KIA MOTORS AMERICA, INC.
