Home >> Kia >> 2014 >> Sorento EX, FWD >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Front Driveshaft >> Components and Components Location >> Components >> LH

Components and Components Location: Components: LH

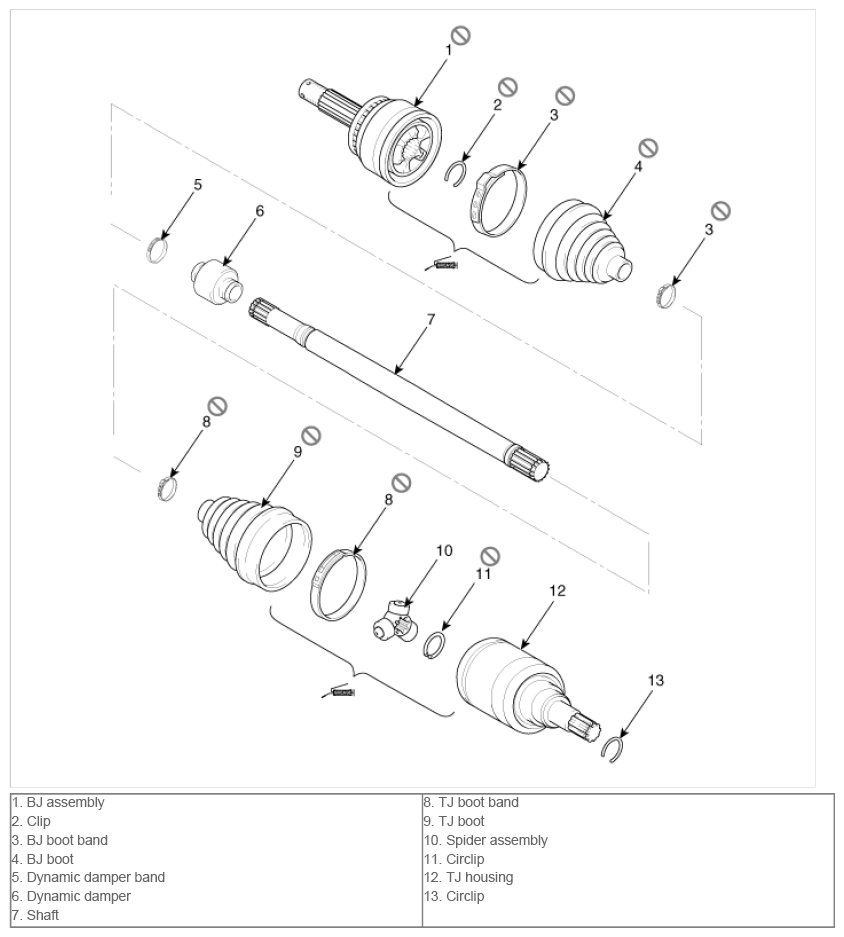

Fig 1: Front Driveshaft Assembly Components Location (LH)

G09765756

Courtesy of KIA MOTORS AMERICA, INC.
