Signal Waveform & Data

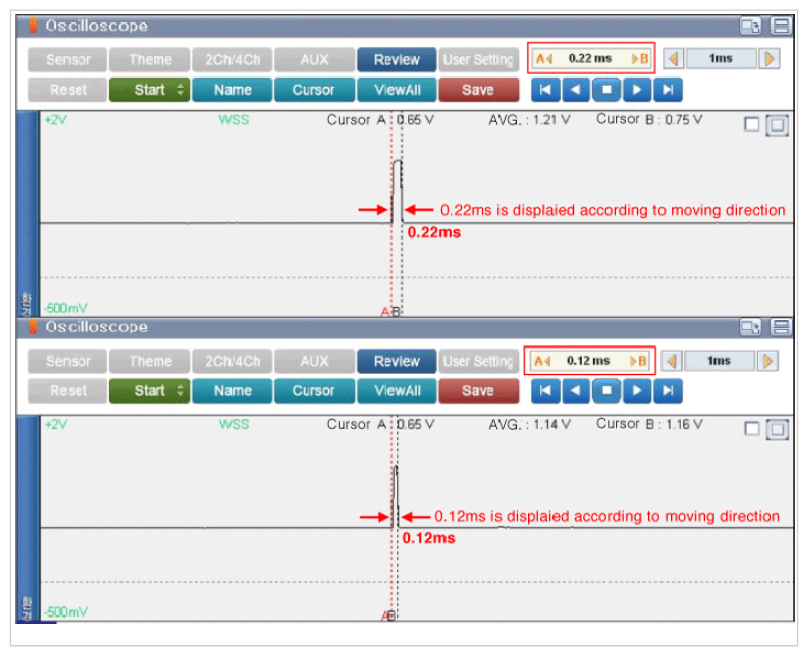

Fig 1: Display - Normal Wheel Speed Sensor Waveform Screen (Low Speed Condition)

Courtesy of KIA MOTORS AMERICA, INC.

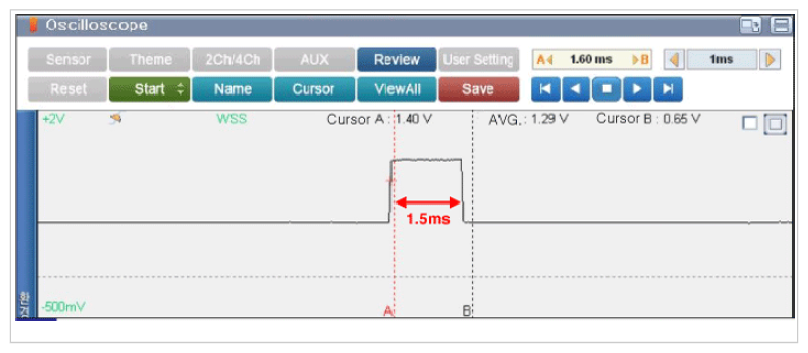

Fig 2: Display - Normal Smart Type Wheel Speed Sensor Waveform Screen (Standing Still)

Courtesy of KIA MOTORS AMERICA, INC.

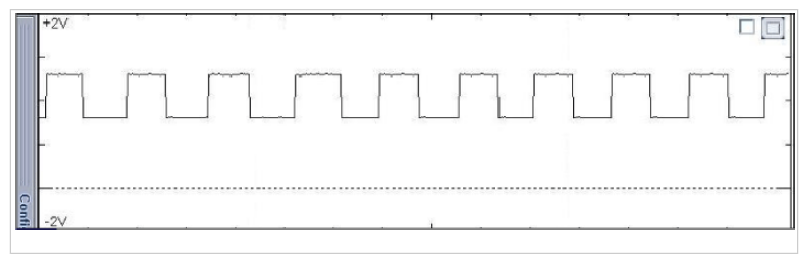

Fig 3: Display - Normal Smart Type Wheel Speed Sensor Waveform Screen (Moving Condition)

Courtesy of KIA MOTORS AMERICA, INC.

• High: approx. 1.4V, Low: approx. 0.7V

* Smart type wheel speed sensor is applied to the rear wheel speed sensor of the vehicle equiped SPAS.
