Overhead Console Lamp Replacement

  1. After loosening the mounting screws, then remove the overhead console lamp assembly (A).

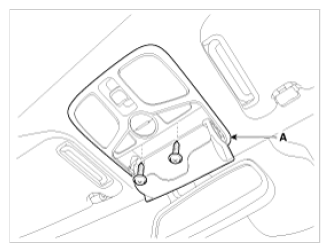

    Fig 1: Identifying Overhead Console Lamp Assembly
    G09766542Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the connectors (A).

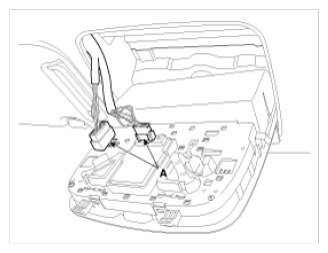

    Fig 2: Identifying Overhead Console Lamp Assembly Connectors
    G09766543Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
