Front Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

After loosening the screw, then remove the front pillar trim (A).

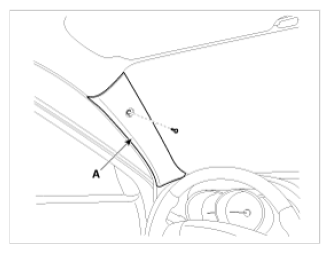

Fig 1: Identifying Front Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Replace any damage clips.
