Interior Antenna Actuation Check

Set the smart key in the following shade area and check the IG ON.

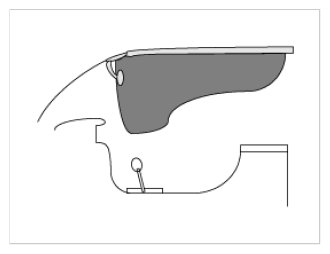

Fig 1: Identifying Area For Setting Smart Key
Courtesy of KIA MOTORS AMERICA, INC.
If the ignition is ON, the antenna runs normal.
Check the interior antenna ignition mode.
Set the smart key in the following shade area and actuate the antenna. Check the LED of smart key is blinking.

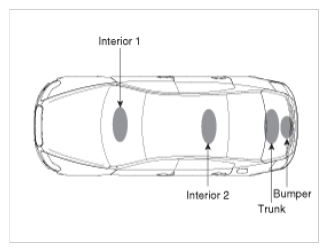

Fig 2: Identifying Interior 1, Interior 2, Trunk And Bumper
Courtesy of KIA MOTORS AMERICA, INC.
If the LED of smart key is not blinking, check the antenna in shade area.

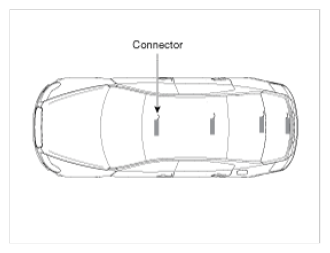

Fig 3: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
