Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

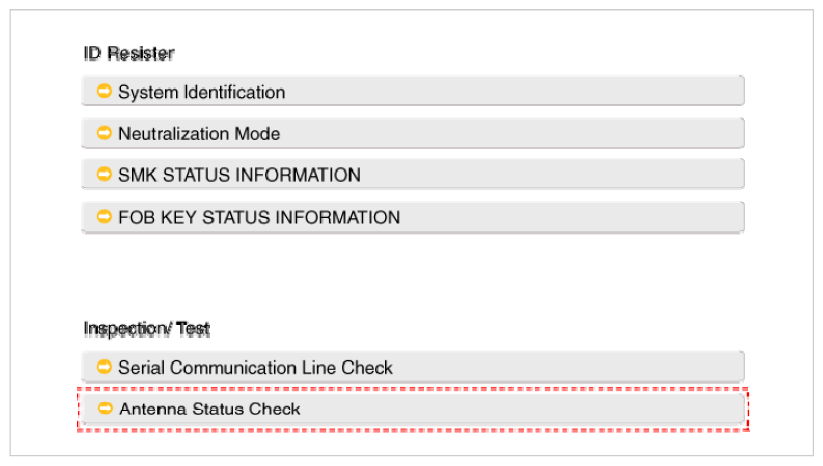

Fig 1: Selecting Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

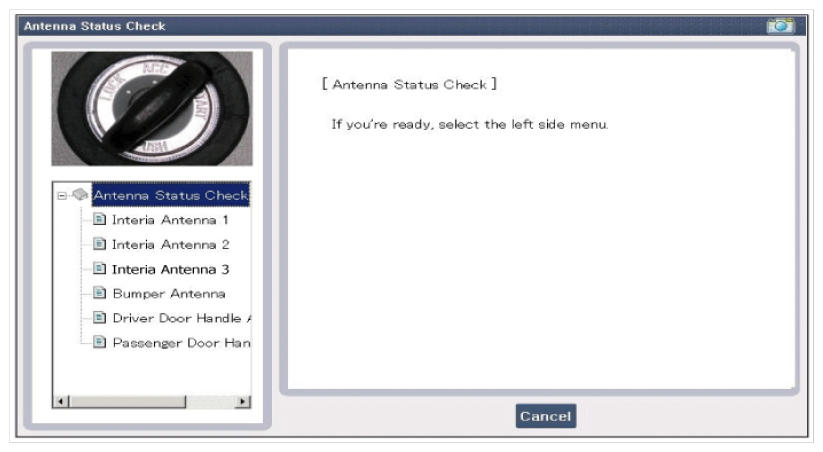

Fig 2: Display Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a GDS.

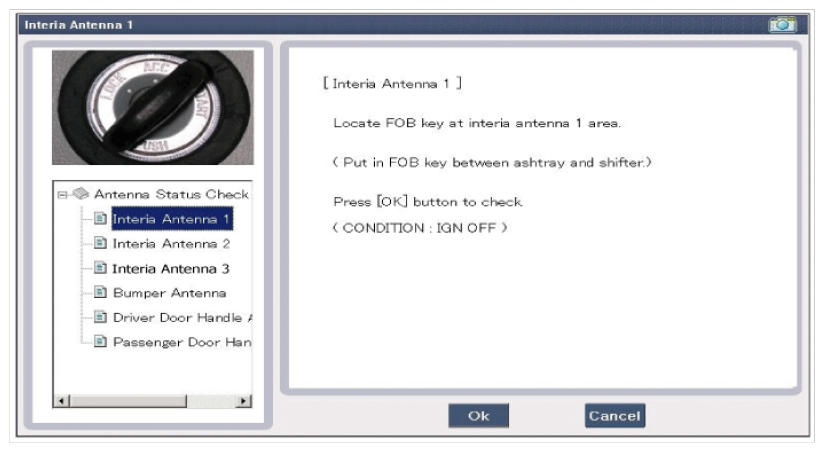

Fig 3: Display Screen For Interia Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

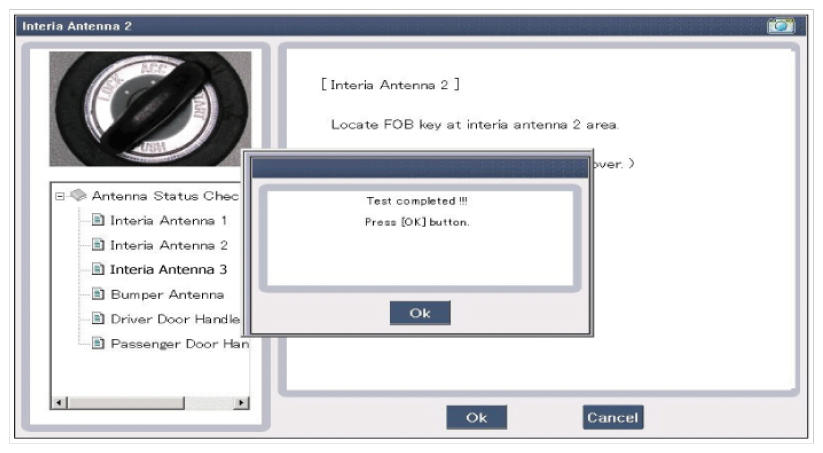

Fig 4: Display Test Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
1. INTERIOR Antenna 1
2. INTERIOR Antenna 2
3. INTERIOR Antenna 3
4. BUMPER Antenna
5. DRV_DR Antenna
6. AST_DR Antenna
