Circuit Diagram

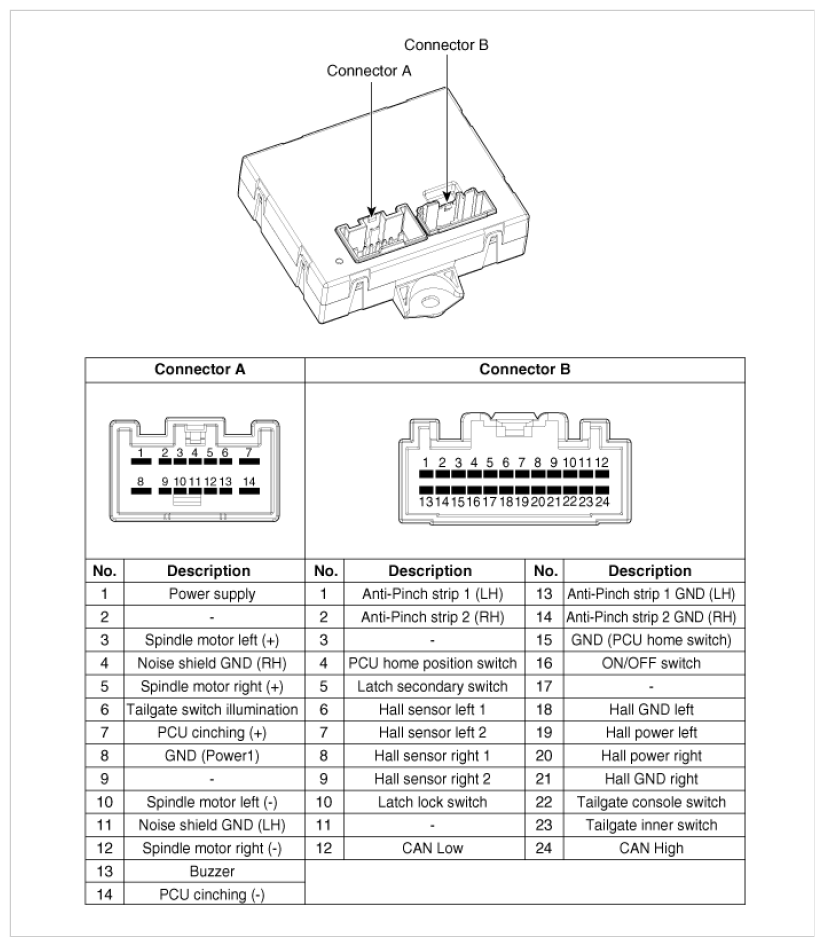

Fig 1: Identifying Connector A And Connector B

G09767199

Courtesy of KIA MOTORS AMERICA, INC.
