Power Tailgate Inspection With GDS
- Check the power Tailgate module input/output value by using the GDS. If the operation of power Tailgate module is abnormal, replace power trunk drive unit.
- To check the DTC of the power trunk module, select "PTM"

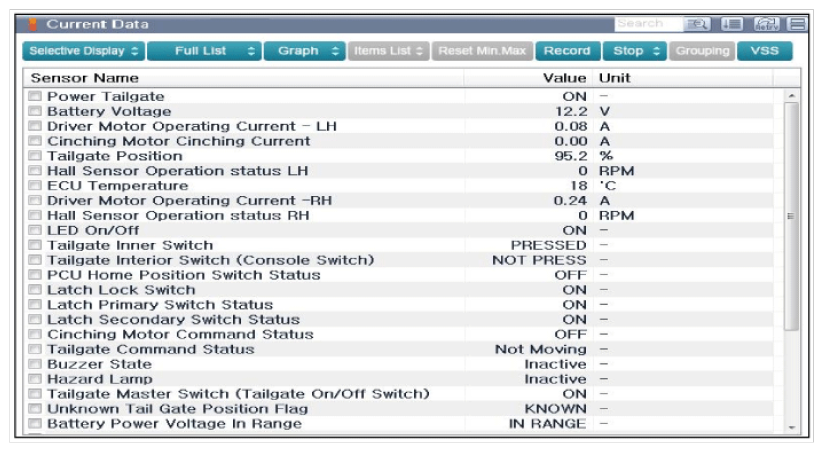

- Select "Input/output monitoring".
