Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A).

    (Refer to "CRASH PAD ")

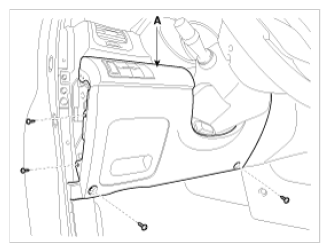

    Fig 1: Identifying Crash Pad Lower Panel
    G09767433Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a bolt.

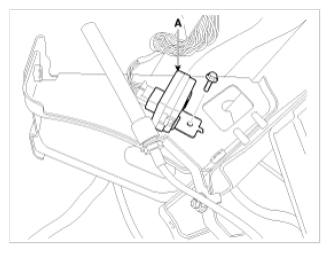

    Fig 2: Identifying SMARTRA Unit
    G09767434Courtesy of KIA MOTORS AMERICA, INC.
