Repair Procedures: Inspection

Operate the auto light switch, then check for continuity between terminals of multifunction switch connector.

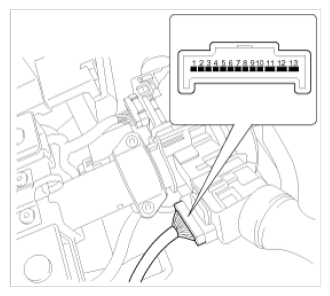

Fig 1: Identifying Auto Light Switch Connector Pins

Courtesy of KIA MOTORS AMERICA, INC.

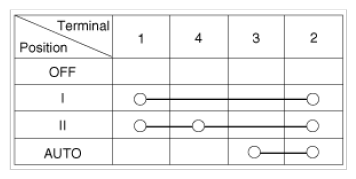

Fig 2: Checking Continuity Between Terminals Of Multifunction Switch Connector

Courtesy of KIA MOTORS AMERICA, INC.
