Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper.

    (Refer to "REAR BUMPER ")

  3. Remove the BSD unit (A) after loosening the mounting screws.

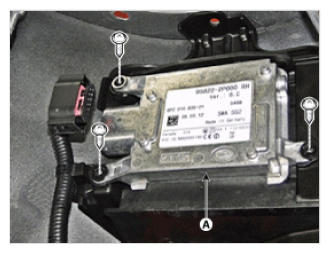

    Fig 1: Identifying BSD Unit
    G09767497Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Take care not to separate the bracket from rear bumper when removing the BSD sensor.
