Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL REPLACEMENT ")

  3. Remove the crash pad side switch assembly (A) after loosening the mounting screws.

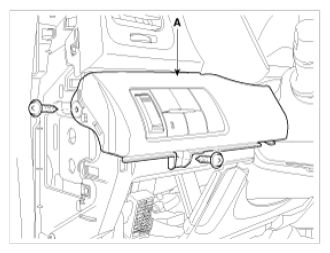

    Fig 1: Identifying Crash Pad Side Switch Assembly
    G09767505Courtesy of KIA MOTORS AMERICA, INC.
