Repair Procedures: Inspection

  1. Disconnect the BSD switch connector.

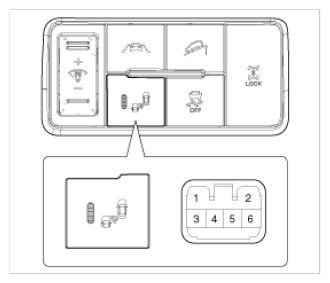

    Fig 1: Identifying BSD Switch Connector
    G09767506Courtesy of KIA MOTORS AMERICA, INC.
  2. Operate the BSD switch, then check for continuity between terminals of BSD switch connector.

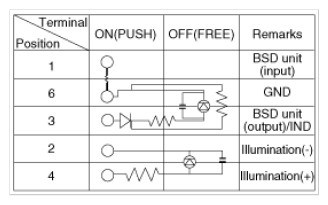

    Fig 2: Checking Continuity Between Terminals Of BSD Switch Connector
    G09767507Courtesy of KIA MOTORS AMERICA, INC.
