Repair Procedures: Removal

  1. Remove the tailgate trim in the trunk after removing the screws and clips.

    (Refer to "TAILGATE ")

  2. Remove the tailgate garnish (A) after disconnecting the connector.

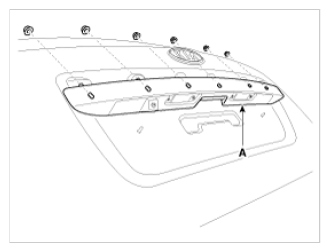

    Fig 1: Tailgate Garnish
    G09767485Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the back view camera (A) after removing the screws (2EA).

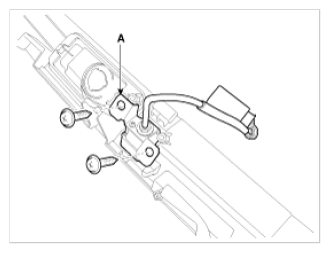

    Fig 2: Back View Camera And Screws
    G09767486Courtesy of KIA MOTORS AMERICA, INC.
