Components And Components Location: Components

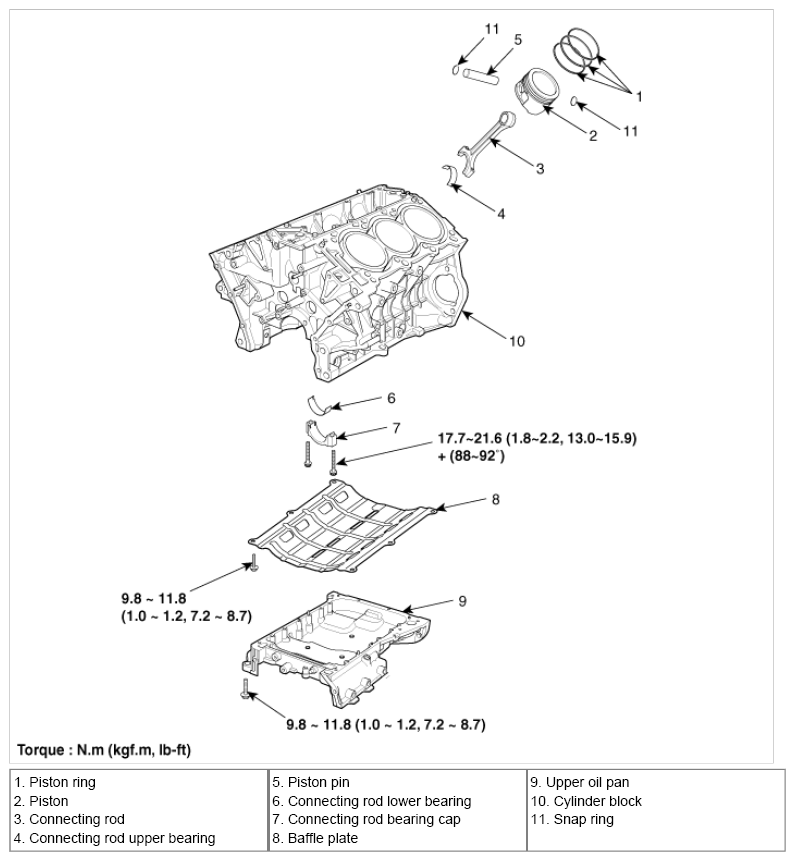

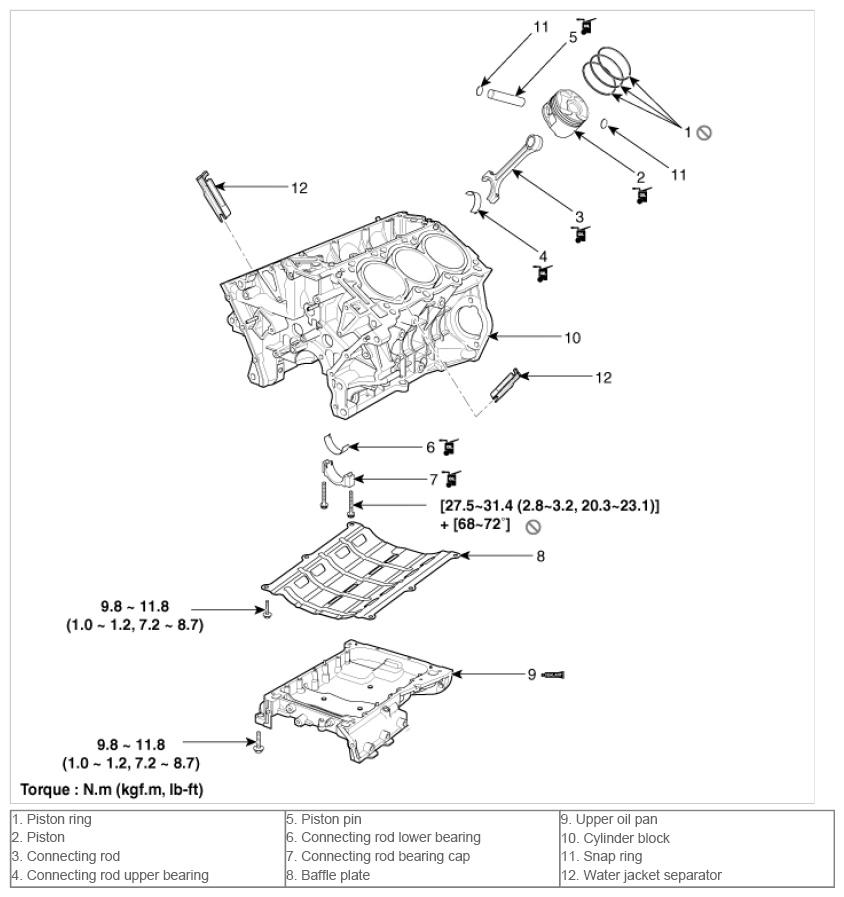

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

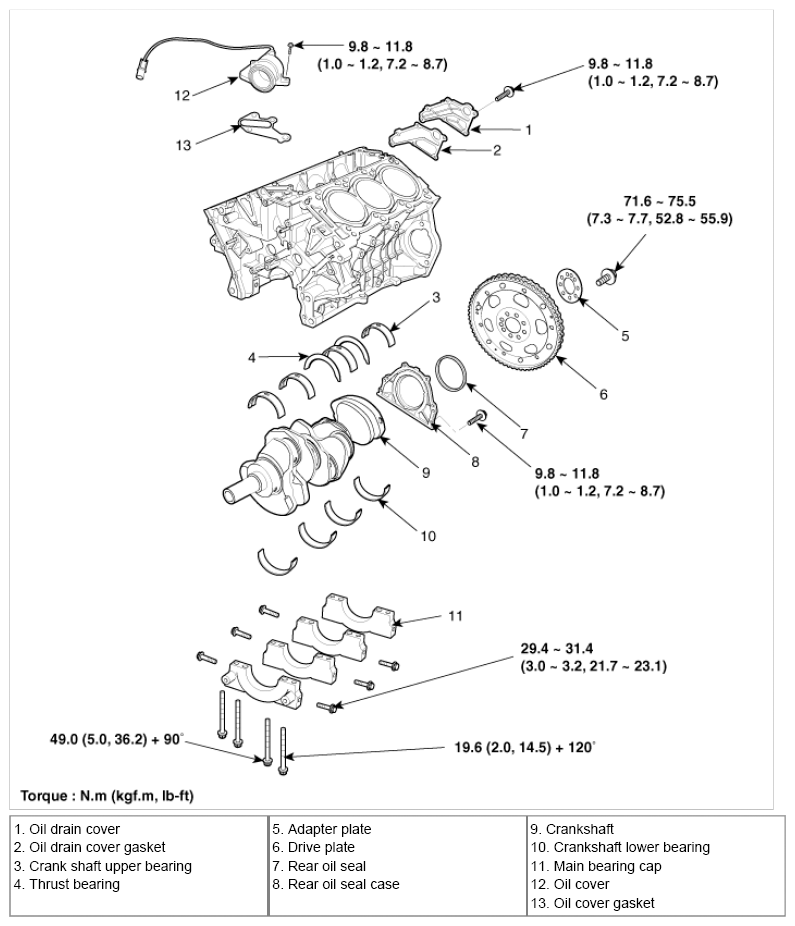

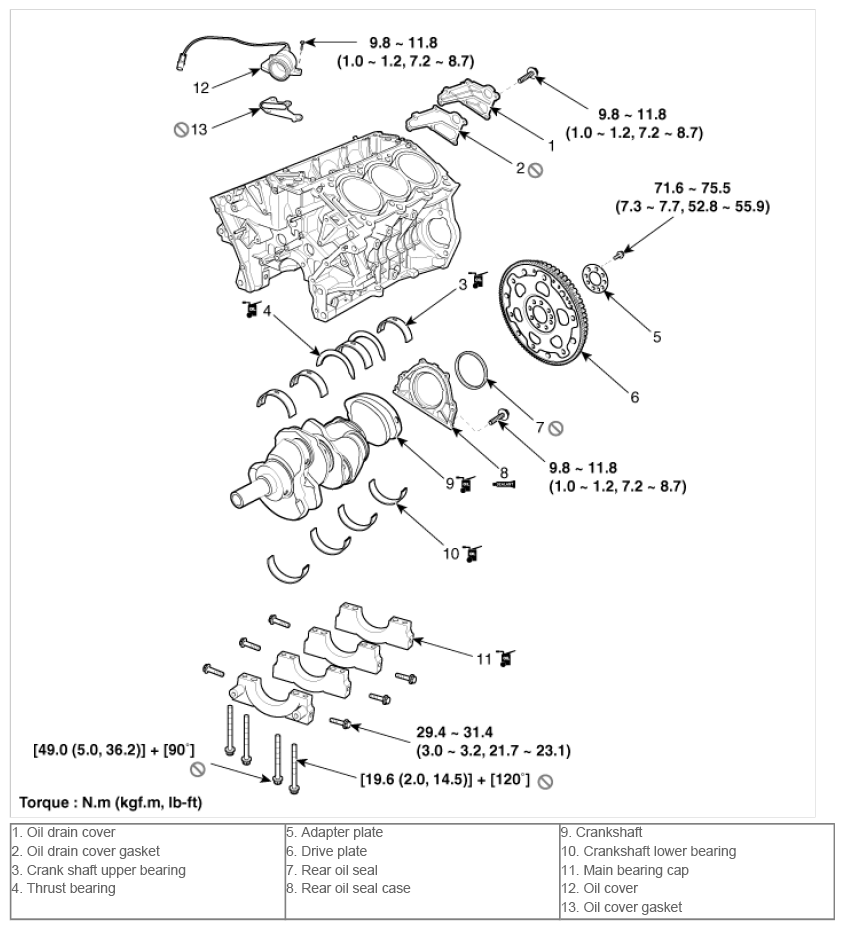

Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
