Chart 4
Chart 4

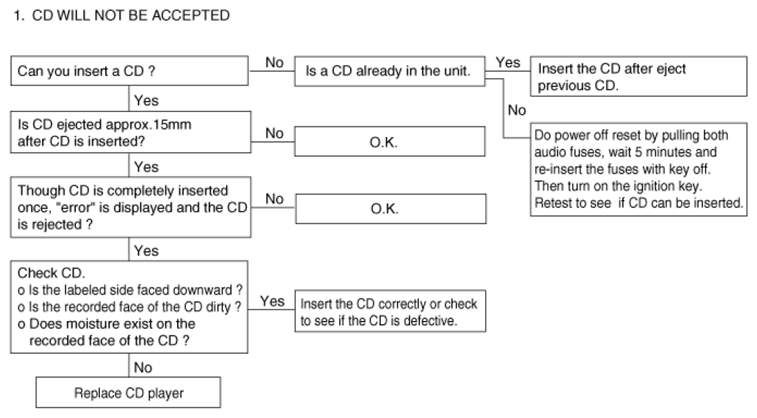

Fig 1: Troubleshooting Chart 4 - Flow Chart (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

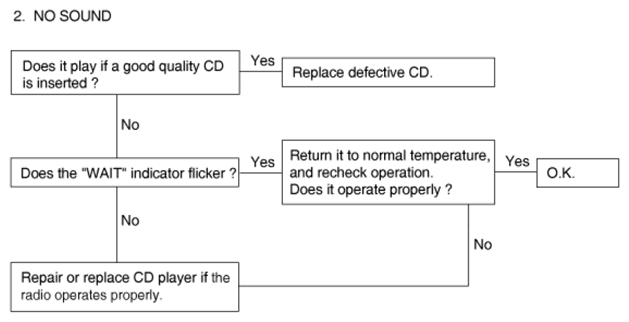

Fig 2: Troubleshooting Chart 4 - Flow Chart (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

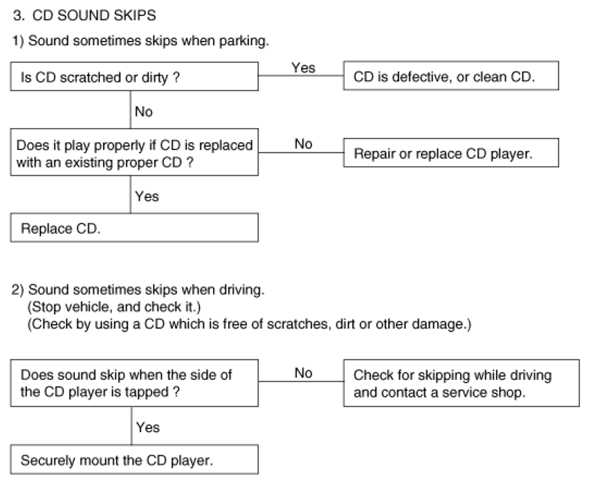

Fig 3: Troubleshooting Chart 4 - Flow Chart (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

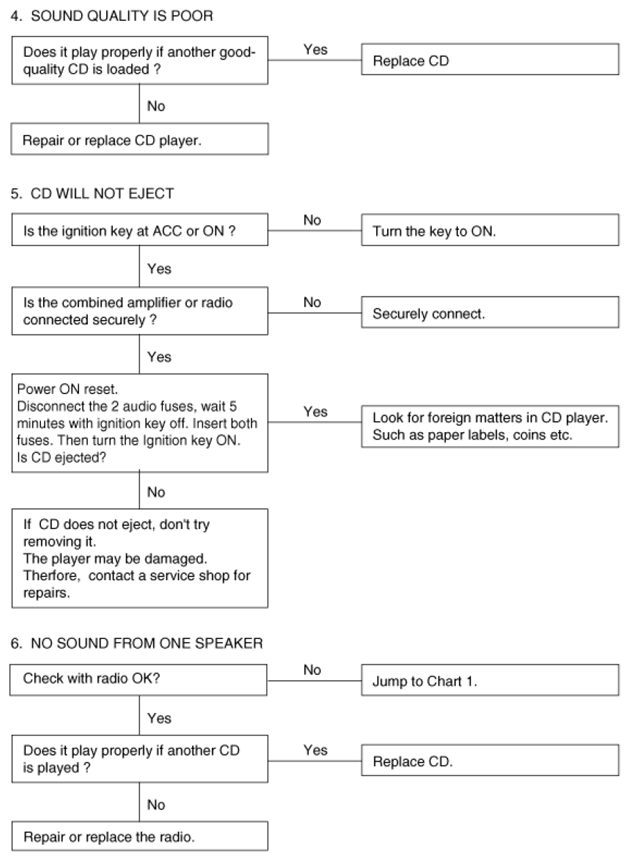

Fig 4: Troubleshooting Chart 4 - Flow Chart (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
