Chart 1
Chart 1

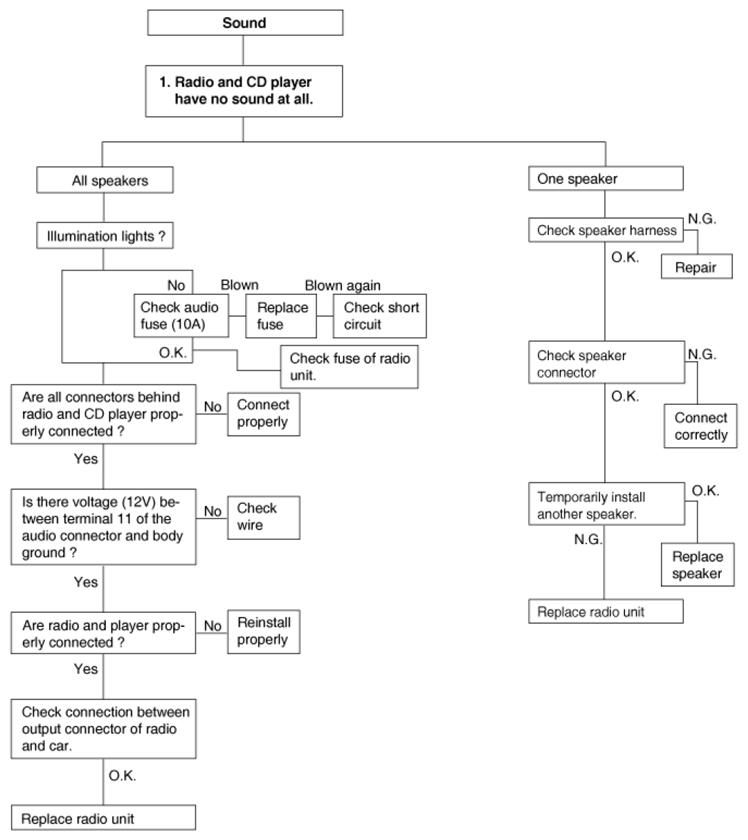

Fig 1: Troubleshooting Chart 1 - Flow Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

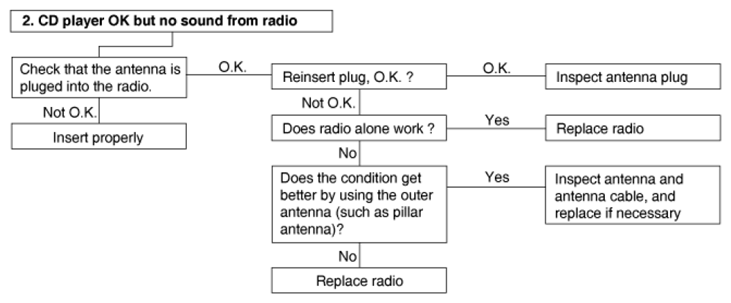

Fig 2: Troubleshooting Chart 1 - Flow Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
