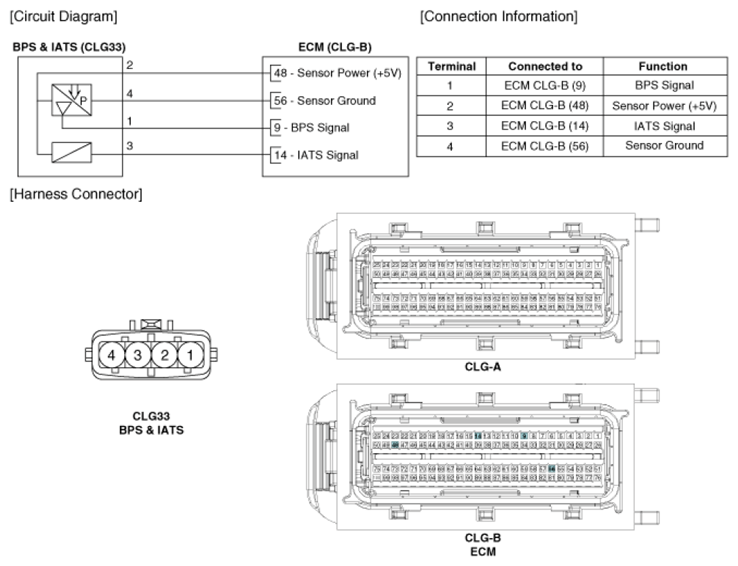

Home >> Kia >> 2014 >> Sedona EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Barometric Pressure Sensor (BPS) >> Schematic Diagrams >> Circuit Diagram
