Manual Transaxle Oil Inspection

WARNING: This page is about a different variant/trim than selected.

Park the vehicle on a level ground and stop the engine.
Retighten the oil filler plug (A) with a new washer.

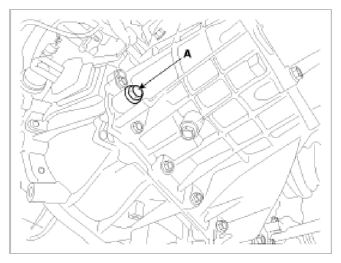

Fig 1: Identifying Oil Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.
Check level with finger.
NOTE: Oil level must be up to fill the hole, if not, add oil until it runs over

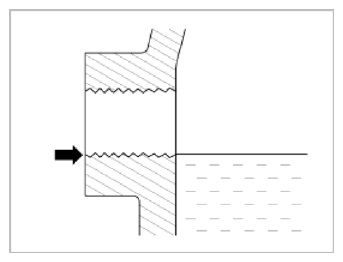

Fig 2: Checking Oil Level
Courtesy of KIA MOTORS AMERICA, INC.
Install filler plug.
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.8 lb-ft)
